Figured I'd post pictures on how to take apart a Gourmia Air Fryer and see how repairable the unit is. Unit is showing 'door open' warning despite door being closed.
NOTE: I'm not responsible for injury or property damage doing any DIY repair. I just want air fried Totino's for lunch lol.
Also demoing the forums 'Gallery embed' function for doing multiple picture posts.

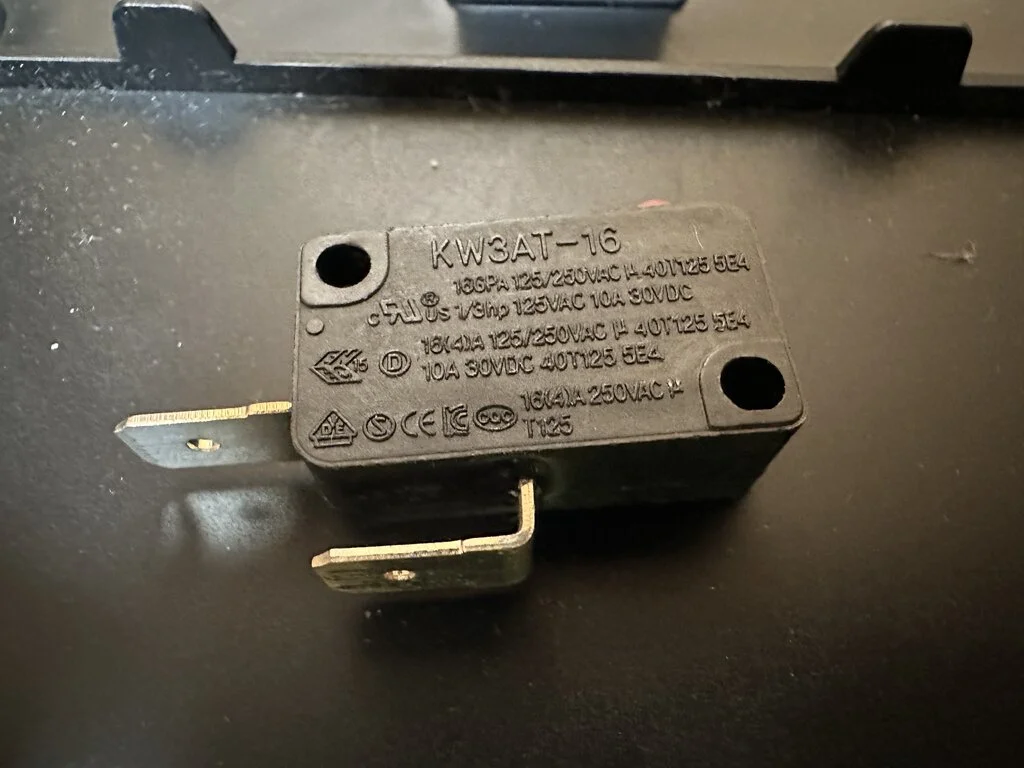

Door switch part numbers. KW3AT-16 'red switch' NO Normally Open switch.
Recommend ordering several before attempting repair.
Remove 8 recessed perimeter screws to remove the bottom cover.
No need to remove the two screws by the plug wire.
No need to remove the bottom cover to get to the top components.
Removing the bottom cover gets to the oven bulb and rotisserie motor.
Pry the top cover which is held on by five tabs to get access to the top components. Break one tab you win some you lose some.
Remove the three screws to remove the control panel.

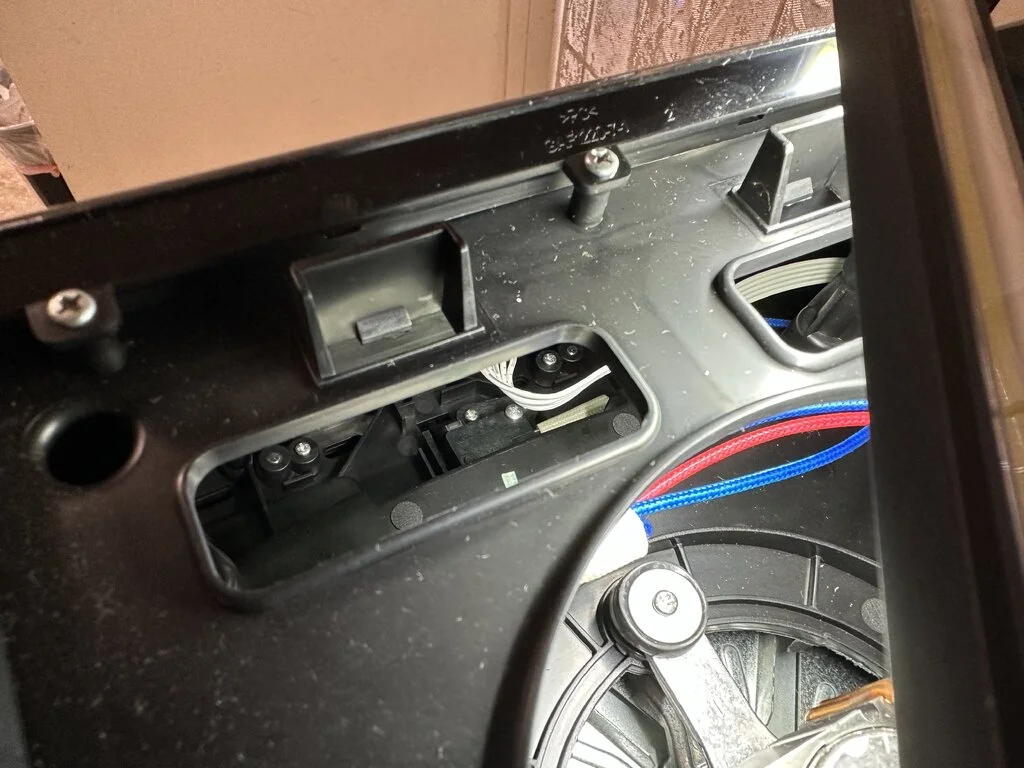

To get access to the door switch.
Not gonna show jumping the wires together. Hangry already.
Put warning for the lawyers, throw totinos for 10 min (and sit for a min or two) enjoy!
NOTE: I'm not responsible for injury or property damage doing any DIY repair. I just want air fried Totino's for lunch lol.
Also demoing the forums 'Gallery embed' function for doing multiple picture posts.
Door switch part numbers. KW3AT-16 'red switch' NO Normally Open switch.
Recommend ordering several before attempting repair.
Remove 8 recessed perimeter screws to remove the bottom cover.
No need to remove the two screws by the plug wire.
No need to remove the bottom cover to get to the top components.
Removing the bottom cover gets to the oven bulb and rotisserie motor.
Pry the top cover which is held on by five tabs to get access to the top components. Break one tab you win some you lose some.
Remove the three screws to remove the control panel.
To get access to the door switch.
Not gonna show jumping the wires together. Hangry already.
Put warning for the lawyers, throw totinos for 10 min (and sit for a min or two) enjoy!
