3614 filters
- Thread starter mrfish
- Start date
- Status

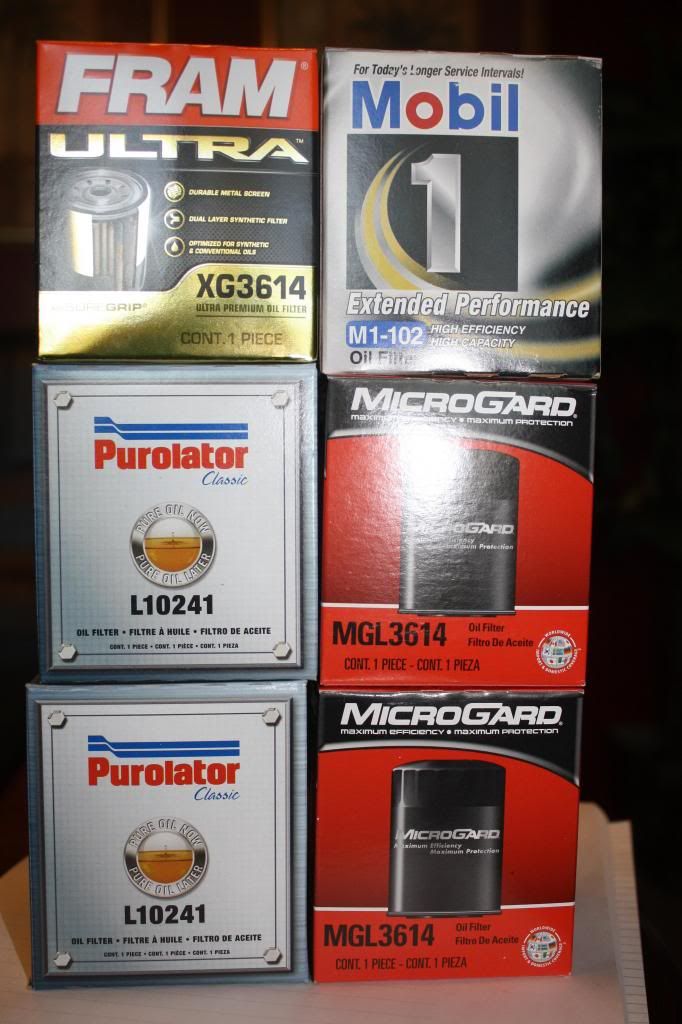

A PT Cruiser uses Fram model suffix 3614 filters, I thought they were for Toyota 1MZ_FE engines in Lexus-That's what my mom's 97 Lexus ES300 has. Really though ? they use the same filter ???
Last edited:
yes, have bunch of those too, from 1mz-fe, including oversize.
Hmm "oversize"-never heard of that, what's that ?
Last edited:
Yes absoulutley the website framcatalog.com, there you can get vitually every possible manufacturer's cross reference there's ever been
Neons use 'em, as do Kohler engines(in Riding lawn mowers & the like)
if i didn't currently have a filter stash that will take me until the end of the decade to use up, i might make you an offer...
if i didn't currently have a filter stash that will take me until the end of the decade to use up, i might make you an offer...
Heck, I don't know. I have used all these sizes you are showing, and all these types on The Beast, or have some in my stash right now. But rather than the 3614 types I like to use the 3600 type. The 3600 type is longer and holds more oil & has more media but the filter head is compatible. Mainly you need the 3/4-16 thread and the gasket outer and inner diameters need to be close enough to match the mounting plate. And you need enough room for an oversize filter in the first place. My present filter in use is a Bosch 3422.
The Fram and Wix sites are good for figuring out if the mount is compatible. Or you can just take filters out of the box and eyeball the threads/gaskets if your eyes are good enough.
The Fram PH3614 that fits my car, and serves as a source of measurements, has these values; I.D. and O.D. mean inner/outer diameter:
Anti-Drain Valve YES
Gasket I.D. 2.47"
Gasket O.D. 2.75"
Gasket Thickness .19"
Gasket Usage Base
Product Height 3.34"
Product I.D. 3/4-16 Thread
Product O.D. 2.98"
Relief Valve Setting PSI 12
The Fram and Wix sites are good for figuring out if the mount is compatible. Or you can just take filters out of the box and eyeball the threads/gaskets if your eyes are good enough.
The Fram PH3614 that fits my car, and serves as a source of measurements, has these values; I.D. and O.D. mean inner/outer diameter:
Anti-Drain Valve YES
Gasket I.D. 2.47"
Gasket O.D. 2.75"
Gasket Thickness .19"
Gasket Usage Base
Product Height 3.34"
Product I.D. 3/4-16 Thread
Product O.D. 2.98"
Relief Valve Setting PSI 12
Or just offer them for sale. Someone will snap them up. A whole raft of cars and trucks will take those filters. An independent mechanic shop, I am sure, will too. If I ever total out the Beast I will likely give my filters to Hidalgo Toyota here in my town.
Look at the Wix equivalent filter right here. It is Wix filter # 51348. Any of these cars etc. will take these filters of yours:
http://www.wixfilters.com/Lookup/PartDetails.aspx?Part=51348
Look at the Wix equivalent filter right here. It is Wix filter # 51348. Any of these cars etc. will take these filters of yours:
http://www.wixfilters.com/Lookup/PartDetails.aspx?Part=51348
I asked Wix about an oversized filter for one of my applications. They replied that they don't offer one due to a difference in one of the pressure specs, I think related to the anti drain back valve. Just because an oversized filter fits perfectly, doesn't mean it is safe to use on an engine not designed for that filter.
Saturn 1.9 takes the 3614.
Hermann
Site Donor 2023
Hundred of Chryler and Toyota products can use them. I have used a 3614 Fram on the Tacoma and 3614 will cross to 3 pages of vehicles on the Denso website.
Apologies for the Super long post, but here, From the Framcatalog website, is the application list for the **3614 filters:
Applications Where Used
ALFA ROMEO
164
V6-3.0L F/inj. (24V) DOHC [1995-1994]
ASUNA
GT (Canada)
4-1.6L F/inj. (6) CAN [1993]
SE (Canada)
4-1.6L F/inj. (6) CAN [1993]
CHEVROLET
Metro
3-1.0L F/inj. (6) [2000-1998]
4-1.3L F/inj. (2) [2001-1998]
Metro (Canada)
4-1.3L F/inj. (8V) SOHC (9) CAN [1992]
Sprint
3-1.0L 2 bbl. (5) [1988-1986]
3-1.0L 2 bbl. (M) [1985]
3-1.0L F/inj. (6) CAN [1992-1989]
3-1.0L F/inj. Turbo (2) [1988-1987]
3-1.0L F/inj. Turbo (2) CAN [1992-1989]
CHEVROLET/GMC TRUCK
Tracker
4-1.6L F/inj. (16V) SOHC (6) [1999]
4-1.6L F/inj. (6) [1998]
Tracker (Canada)
CHRYSLER
Cirrus
4-2.0L F/inj. (16V) SOHC (C) [2000]
4-2.4L F/inj. (16V) DOHC (X) [2000-1995]
Daytona (Canada)
4-2.2L F/inj. Turbo (A) CAN [1989-1987]
4-2.2L F/inj. Turbo (C) CAN [1990]
4-2.2L F/inj. Turbo (E) CAN [1988-1984]
4-2.5L F/inj. (K) CAN [1990-1987]
4-2.5L F/inj. Turbo (J) CAN [1989]
V6-3.0L F/inj. (3) CAN [1990]
Dynasty (Canada)
4-2.5L F/inj. (K) CAN [1990-1988]
V6-3.0L F/inj. (3) CAN [1990-1988]
V6-3.3L F/inj. (R) CAN [1990]
E-Class
4-2.2L 2 bbl. (C) [1983]
4-2.2L F/inj. (D) [1984]
4-2.2L F/inj. Turbo (E) [1984]
Executive Limousine
4-2.2L F/inj. Turbo (E) [1986]
4-2.5L F/inj. (K) [1986]
Imperial
V6-3.3L F/inj. (R) [1990]
Laser
4-2.2L F/inj. (D) [1986-1984]
4-2.2L F/inj. Turbo (E) [1986-1984]
4-2.5L F/inj. (K) [1986]
LeBaron - K Body
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1984-1983]
4-2.2L F/inj. (D) [1988-1984]
4-2.2L F/inj. Turbo (E) [1988-1984]
4-2.5L F/inj. (K) [1988-1986]
LeBaron GTS
4-2.2L F/inj. (D) [1989-1985]
4-2.2L F/inj. T/Intrcld (A) [1989]
4-2.2L F/inj. Turbo (E) [1988-1985]
4-2.5L F/inj. (K) [1989-1986]
4-2.5L F/inj. Turbo (J) [1989]
LeBaron-A body 4 door sedan
V6-3.0L F/inj. (3) [1990]
LeBaron-J body 2 door coupe
4-2.2L F/inj. (D) [1989-1987]
4-2.2L F/inj. Turbo (C) [1990]
4-2.2L F/inj. Turbo (E) [1988-1987]
4-2.5L F/inj. (K) [1990-1987]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990]
Neon
4-2.0L F/inj. (16V) (C) CAN [2000]
Neon (Canada)
4-2.0L F/inj. (16V) (C) CAN [2002]
4-2.0L F/inj. (16V) SOHC (C) [2001]
New Yorker
4-2.2L 2 bbl. (C) [1983]
4-2.2L F/inj. (D) [1984]
4-2.2L F/inj. Turbo (E) [1988-1984]
4-2.5L F/inj. (K) [1987-1986]
V6-3.0L F/inj. (3) [1989-1988]
V6-3.3L F/inj. (R) [1990]
PT Cruiser
4-2.4L F/inj. (16V) DOHC (B) [2008-2001]
4-2.4L F/inj. (16V) DOHC (X) [2008-2005]
4-2.4L F/inj. EDZ (9) [2010-2009]
Sebring 2 door coupe
4-2.4L F/inj. (16V) DOHC (X) [2002-2001]
Sebring 4 door sedan and convertible
4-2.4L F/inj. (16V) DOHC (J) [2005]
4-2.4L F/inj. (16V) DOHC (PZEV) (J) [2004]
4-2.4L F/inj. (16V) DOHC (X) [2006-1996]
TC Maserati
4-2.2L F/inj. (16V) T/Intrcld (R) [1989]
4-2.2L F/inj. (8V) T/Intrcld (P) [1989]
4-2.2L F/inj. Turbo (R) [1990]
V6-3.0L F/inj. (S) [1990]
Town & Country
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1984-1983]
4-2.2L F/inj. Turbo (E) [1988-1985]
4-2.5L F/inj. (K) [1988-1986]
CHRYSLER TRUCK
Pacifica
V6-3.8L F/inj. OHV (L) [2008]
Town & Country APV
V6-3.3L F/inj. (H) [2008]
V6-3.3L F/inj. (R) [2007-1990]
V6-3.3L F/inj. Flex Fuel EGV (E) [2010-2009]
V6-3.3L F/inj. Flex Fuel EGV (H) [2008]
V6-3.8L F/inj. (1) [2009]
V6-3.8L F/inj. (P) [2008]
V6-3.8L F/inj. EGL (1) [2010]
V6-3.8L F/inj. OHV (L) [2007]
V6-4.0L F/inj. (24V) SOHC EGQ (X) [2010]
Voyager
4-2.4L F/inj. (16V) DOHC (B) [2003-2000]
DODGE
400
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1983]
600
4-2.2L 2 bbl. (C) [1984-1983]
4-2.2L F/inj. (D) [1988-1984]
4-2.2L F/inj. Turbo (E) [1988-1984]
4-2.5L F/inj. (K) [1988-1986]
Aries
4-135CID 2 bbl. (B) [1981]
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1985-1983]
4-2.2L F/inj. (D) [1989-1985]
4-2.5L F/inj. (K) [1989-1986]
Charger
4-1.7L 2 bbl. (B) [1983]
4-2.2L 2 bbl. (8) [1984-1983]
4-2.2L 2 bbl. (C) [1984-1983]
4-2.2L 2 bbl. (F) [1983]
Daytona
4-2.2L F/inj. (D) [1986-1984]
4-2.2L F/inj. T/Intrcld (A) [1989-1987]
4-2.2L F/inj. Turbo (C) [1990]
4-2.2L F/inj. Turbo (E) [1988-1984]
4-2.5L F/inj. (K) [1990-1986]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990]
Dynasty
4-2.5L F/inj. (K) [1990-1988]
V6-3.0L F/inj. (3) [1990-1988]
V6-3.3L F/inj. (R) [1990]
Lancer
4-2.2L F/inj. (D) [1989-1985]
4-2.2L F/inj. T/Intrcld (A) [1989-1988]
4-2.2L F/inj. Turbo (E) [1988-1985]
4-2.5L F/inj. (K) [1989-1986]
4-2.5L F/inj. Turbo (J) [1989]
Neon
4-2.0L F/inj. (16V) DOHC (Y) [1999-1995]
4-2.0L F/inj. (16V) SOHC (C) [2005-1995]
4-2.0L F/inj. (16V) SOHC (F) [2004-2001]
Omni
4-1.6L 2 bbl. (A) [1986-1983]
4-1.7L 2 bbl. (A) [1982]
4-1.7L 2 bbl. (B) [1983]
4-105CID 2 bbl. (A) [1981-1979]
4-135CID 2 bbl. (B) [1981]
4-2.2L 2 bbl. (8) [1986-1984]
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1987-1983]
4-2.2L F/inj. (D) [1990-1988]
4-2.2L F/inj. Turbo (E) [1985]
Shadow
4-2.2L F/inj. (D) [1990-1987]
4-2.2L F/inj. Turbo (A) [1989]
4-2.2L F/inj. Turbo (C) [1990]
4-2.2L F/inj. Turbo (E) [1988-1987]
4-2.5L F/inj. (K) [1990-1988]
4-2.5L F/inj. Turbo (J) [1990-1989]
Spirit
4-2.5L F/inj. (K) [1990-1989]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990-1989]
Stratus
4-2.0L F/inj. (16V) SOHC (C) [2000-1995]
4-2.4L F/inj. (16V) DOHC (X) [2002-1995]
Stratus 4 door sedan
4-2.4L F/inj. (16V) DOHC (PZEV) (J) [2006-2004]
4-2.4L F/inj. (16V) DOHC (X) [2006-2003]
SX 2.0 (Canadian)
4-2.0L F/inj. (16V) SOHC (C) [2005-2003]
DODGE TRUCK
B100-350
V6-3.9L F/inj. (X) [1990-1988]
Caravan
4-2.2L 2 bbl. (C) [1987-1984]
4-2.4L F/inj. (16V) DOHC (B) [2007-1996]
4-2.5L F/inj. (K) [1990-1987]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990-1987]
V6-3.3L F/inj. (R) [2007-1990]
V6-3.3L F/inj. Flex Fuel EGV (E) [2007]
V6-3.8L F/inj. (L) [2007]
D100-350
V6-3.9L F/inj. (X) [1990-1988]
Dakota
4-2.2L 2 bbl. (C) [1988-1987]
4-2.5L F/inj. (G) [1990-1989]
V6-3.9L 2 bbl. (M) [1987]
V6-3.9L F/inj. (X) [1990-1988]
Grand Caravan
4-2.2L 2 bbl. (C) [1987]
4-2.4L F/inj. (16V) DOHC (B) [2007-1996]
4-2.5L F/inj. (K) [1990-1987]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990-1987]
V6-3.3L F/inj. (H) [2008]
V6-3.3L F/inj. (R) [2007-1990]
V6-3.3L F/inj. Flex Fuel (H) [2008]
V6-3.3L F/inj. Flex Fuel EGV (E) [2010-2007]
V6-3.8L F/inj. (1) [2009]
V6-3.8L F/inj. (L) [2007]
V6-3.8L F/inj. (P) [2008]
V6-3.8L F/inj. EGL (1) [2010]
V6-4.0L F/inj. (24V) SOHC EGQ (X) [2010]
Mini Ram
4-2.2L 2 bbl. (C) [1987-1984]
4-2.5L F/inj. (K) [1988-1987]
V6-3.0L F/inj. (3) [1988-1987]
Rampage
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1984-1983]
Royal Mini Ram
4-2.2L 2 bbl. (C) [1987-1984]
V6-3.0L F/inj. (3) [1987]
W100-350
V6-3.9L F/inj. (X) [1990-1989]
FORD
C-MAX
4-1.6L F/inj. [2013]
4-2.5L F/inj. (16V) DOHC (A) [2013]
C-MAX Hybrid
4-2.0L F/inj. (U) [2013]
Crown Victoria
V8-4.6L F/inj. (16V) SOHC Flex Fuel (V) [2011-2009]
Fiesta
4-1.6L F/inj. (16V) DOHC (J) [2013-2011]
Focus
4-2.0L F/inj. (16V) DOHC (2) [2013-2012]
4-2.0L F/inj. (16V) DOHC (9) [2012]
4-2.0L F/inj. (16V) DOHC (N) [2005]
4-2.0L F/inj. (16V) DOHC (PZEV) (N) [2008]
4-2.0L F/inj. (16V) DOHC (SULEV) (N) [2008]
4-2.0L F/inj. (16V) DOHC DURATEC 20 (N) [2011-2009]
4-2.0L F/inj. (16V) DOHC DURATEC 20E (N) [2011-2009]
4-2.0L F/inj. (16V) DOHC ECOBOOST Turbo (9) [2013]
4-2.0L F/inj. (16V) DOHC Flex Fuel (2) [2013-2012]
4-2.0L F/inj. (PZEV) (N) [2007-2006]
4-2.0L F/inj. (SULEV) (N) [2007-2006]
4-2.3L F/inj. (16V) DOHC (Z) [2007-2003]
Fusion
4-1.6L D.I. ECOBOOST Turbo (R) [2013]
4-2.0L D.I. ECOBOOST Turbo (9) [2013]
4-2.3L F/inj. (16V) DOHC (Z) [2008-2006]
4-2.5L F/inj. (16V) DOHC (7) [2013]
4-2.5L F/inj. (16V) DOHC (A) [2012-2010]
Fusion Hybrid
4-2.0L D.I. (U) [2013]
4-2.5L F/inj. (16V) DOHC (3) [2012-2010]
Taurus
4-2.0L D.I. ECOBOOST Turbo (9) [2013]
FORD TRUCK
Edge
4-2.0L D.I. Turbo (9) [2013]
4-2.0L F/inj. Turbo (9) [2012]
Escape
4-1.6L D.I. (16V) Turbo (X) [2013]
4-2.0L D.I. Turbo (9) [2013]
4-2.3L F/inj. (16V) DOHC (PZEV) (Z) [2008-2005]
4-2.5L F/inj. (16V) DOHC (7) [2013-2009]
Escape Hybrid
4-2.5L F/inj. (16V) DOHC (3) [2012-2009]
Explorer
4-2.0L D.I. (16V) DOHC Turbo (9) [2013-2012]
Ranger
4-2.3L F/inj. (16V) DOHC (D) [2011-2004]
Transit Connect
4-2.0L F/inj. (16V) DOHC (N) [2013-2010]
4-2.0L F/inj. (16V) DOHC CNG [2013]
GEO
Metro
3-1.0L F/inj. (6) [1997-1989]
3-1.0L F/inj. (6V) SOHC (6) [1994]
4-1.3L F/inj. (3) CAN [1993]
4-1.3L F/inj. (8V) SOHC (3) CAN [1994-1992]
4-1.3L F/inj. (9) [1997-1995]
GEO TRUCK
Tracker
4-1.6L F/inj. (16V) SOHC (6) [1997-1994]
4-1.6L F/inj. (8V) SOHC (U) [1995-1990]
Tracker (Canada)
4-1.6L F/inj. (8V) SOHC (U) CAN [1989]
JEEP TRUCK
Liberty
4-2.4L F/inj. (1) [2005-2002]
TJ (Canada)
4-2.4L F/inj. (1) [2006-2003]
Wrangler
4-2.4L F/inj. (1) [2006-2003]
V6-3.8L F/inj. (1) [2009-2007]
V6-3.8L F/inj. EGT (1) [2011-2010]
LAND ROVER TRUCK
LR2
4-2.0L D.I. (16V) DOHC Turbo (G) [2013]
Range Rover Evoque
4-2.0L D.I. (16V) DOHC Turbo (G) [2013-2012]
LEXUS
ES250
V6-2.5L F/inj. (24V) DOHC 2VZ-FE [1991-1990]
ES300
V6-3.0L F/inj. (24V) DOHC 1MZ-FE [1999-1994]
V6-3.0L F/inj. (24V) DOHC 3VZ-FE [1993-1992]
V6-3.0L F/inj. (24V) QOHC 1MZ-FE [2003-2000]
ES330
V6-3.3L F/inj. (24V) QOHC 3MZ-FE [2006-2004]
GS300
6-3.0L F/inj. (24V) DOHC 2JZ-GE [2005-1993]
GS400
V8-4.0L F/inj. (32V) DOHC 1UZ-FE [2000-1998]
GS430
V8-4.3L F/inj. (32V) QOHC 3UZFE [2007-2001]
IS300
6-3.0L F/inj. (24V) DOHC 2JZ-GE [2005-2001]
LS400
V8-4.0L F/inj. (32V) DOHC 1UZ-FE [2000-1990]
LS430
V8-4.3L F/inj. (32V) QOHC 3UZFE [2006-2001]
SC300
6-3.0L F/inj. (24V) DOHC 2JZ-GE [2000-1992]
SC400
V8-4.0L F/inj. (32V) DOHC 1UZ-FE [2000-1992]
SC430
V8-4.3L F/inj. (32V) QOHC 3UZFE [2010-2002]
LEXUS TRUCK
GX470
V8-4.7L F/inj. (32V) QOHC 2UZ-FE [2009-2003]
LX450
6-4.5L F/inj. (24V) DOHC 1FZ-FE [1997]
LX470
V8-4.7L F/inj. (32V) DOHC 2UZ-FE [1999-1998]
V8-4.7L F/inj. (32V) QOHC 2UZ-FE [2007-2000]
RX300
V6-3.0L F/inj. (24V) DOHC 1MZ-FE [1999]
V6-3.0L F/inj. (24V) QOHC 1MZ-FE [2003-2000]
RX330
V6-3.3L F/inj. (24V) QOHC 3MZ-FE [2006-2004]
RX400h Hybrid
V6-3.3L F/inj. (24V) DOHC 3MZ-FE [2008-2006]
LINCOLN
MKZ
4-2.0L D.I. Turbo (9) [2013]
MKZ Hybrid
4-2.0L D.I. (U) [2013]
4-2.5L F/inj. (16V) DOHC (3) [2012-2011]
MAZDA
3
4-2.0L F/inj. (16V) DOHC (F) [2013-2004]
4-2.0L F/inj. (16V) DOHC (G) [2012-2009]
4-2.0L F/inj. (16V) DOHC (PZEV) (G) [2013-2008]
4-2.3L D.I. (16V) DOHC Turbo (3) [2013-2010]
4-2.3L D.I. (16V) DOHC Turbo (4) [2013-2010]
4-2.5L F/inj. (16V) DOHC (5) [2013-2010]
4-2.5L F/inj. (16V) DOHC (6) [2012-2010]
4-2.5L F/inj. (PZEV) (6) [2013]
6
4-2.5L F/inj. (16V) DOHC (A) [2010-2009]
4-2.5L F/inj. (16V) DOHC (H) [2013-2010]
MX-5 Miata
4-2.0L F/inj. (16V) DOHC (F) [2013-2006]
MAZDA TRUCK
5
4-2.3L F/inj. (16V) DOHC (3) [2010-2009]
4-2.3L F/inj. (16V) DOHC (L) [2010]
4-2.5L F/inj. (16V) DOHC (L) [2013-2012]
B2300
4-2.3L F/inj. (16V) DOHC (D) [2010-2004]
CX-7
4-2.3L D.I. (16V) DOHC MZR Turbo (3) [2012-2010]
4-2.3L D.I. (16V) DOHC MZR Turbo (L) [2012-2010]
4-2.5L F/inj. (5) [2012-2010]
4-2.5L F/inj. (PZEV) (M) [2012-2010]
Tribute
4-2.3L F/inj. (16V) DOHC (Z) [2008-2005]
4-2.5L F/inj. (16V) DOHC (7) [2011-2010]
Tribute Hybrid
4-2.5L F/inj. (16V) DOHC (3) [2010]
MERCURY
Mariner
4-2.3L F/inj. (16V) DOHC (Z) [2008-2005]
4-2.5L F/inj. (16V) DOHC (7) [2011-2009]
Mariner Hybrid
4-2.5L F/inj. (16V) DOHC (3) [2011-2010]
Milan
4-2.3L F/inj. (16V) DOHC (Z) [2008-2006]
4-2.5L F/inj. (16V) DOHC (A) [2011-2010]
Milan Hybrid
4-2.5L F/inj. (16V) DOHC (3) [2011-2010]
PLYMOUTH
Acclaim
4-2.5L F/inj. (K) [1990-1989]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990-1989]
Breeze
4-2.0L F/inj. (16V) SOHC (C) [2000-1996]
4-2.4L F/inj. (16V) DOHC (X) [2000-1997]
4-2.4L F/inj. (16V) DOHC (X) CAN [1996]
Caravelle
4-2.2L (C) CAN [1988-1987]
4-2.2L F/inj. (D) [1988-1985]
4-2.2L F/inj. (D) CAN [1985]
4-2.2L F/inj. Turbo (E) [1988-1985]
4-2.2L F/inj. Turbo (E) CAN [1985]
4-2.5L F/inj. (K) [1988-1986]
Caravelle (Canada)
4-2.2L 2 bbl. (C) CAN [1984-1983]
4-2.2L F/inj. (D) CAN [1984]
4-2.2L F/inj. Turbo (E) CAN [1984]
Expo
4-2.2L 2 bbl. (C) CAN [1987]
4-2.2L 2 bbl. (D) CAN [1989]
4-2.2L F/inj. (D) CAN [1988]
Horizon
4-1.6L 2 bbl. (A) [1986-1983]
4-1.7L 2 bbl. (A) [1982]
4-1.7L 2 bbl. (B) [1983]
4-105CID 2 bbl. (A) [1981-1978]
4-135CID 2 bbl. (B) [1981]
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1987-1983]
4-2.2L 2 bbl. HO (8) [1986-1984]
4-2.2L F/inj. (D) [1990-1988]
Neon
4-2.0L F/inj. (16V) DOHC (Y) [1999-1995]
4-2.0L F/inj. (16V) SOHC (C) [2001-1995]
Reliant
4-135CID 2 bbl. (B) [1981]
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1985-1983]
4-2.2L F/inj. (D) [1989-1985]
4-2.5L F/inj. (K) [1989-1986]
Sundance
4-2.2L F/inj. (D) [1990-1987]
4-2.2L F/inj. Turbo (E) [1988-1987]
4-2.5L F/inj. (K) [1990-1988]
4-2.5L F/inj. Turbo (J) [1990-1989]
Turismo
4-1.6L 2 bbl. (A) CAN [1985-1984]
PLYMOUTH TRUCK
Grand Voyager
4-2.4L F/inj. (16V) DOHC (B) [2000-1996]
4-2.5L F/inj. (K) [1990-1988]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990-1988]
V6-3.3L F/inj. (R) [1990]
Scamp
4-2.2L 2 bbl. (C) [1983]
Voyager
4-2.2L 2 bbl. (C) [1987-1984]
4-2.4L F/inj. (16V) DOHC (B) [2000-1996]
4-2.5L F/inj. (K) [1990-1987]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990-1987]
V6-3.3L F/inj. (R) [1990]
PONTIAC
Firefly (Canada)
3-1.0L (6) CAN [1990-1989]
3-1.0L 2 bbl. (5) CAN [1988-1985]
3-1.0L 2 bbl. (M) CAN [1985]
3-1.0L F/inj. (6) CAN [2000-1991]
3-1.0L F/inj. Turbo (2) CAN [1991-1987]
4-1.3L F/inj. (2) CAN [2000-1998]
4-1.3L F/inj. (9) CAN [1997-1994]
PONTIAC TRUCK
Vibe
4-1.8L F/inj. (16V) DOHC 2ZZ-GE (L) [2005]
SAAB
900
4-2.0L F/inj. [1979]
4-2.0L F/inj. (16V) B202L Turbo (L) CAN [1991]
4-2.0L F/inj. (16V) B202R Turbo (T) [1994-1993]
4-2.0L F/inj. (16V) DOHC B202I (D) [1990-1986]
4-2.0L F/inj. (16V) DOHC B202L Turbo (L) [1994-1986]
4-2.0L F/inj. (16V) DOHC B204L Turbo (N) [1998-1994]
4-2.0L F/inj. (8V) B201I (J) [1986-1984]
4-2.0L F/inj. (8V) DOHC B202I (D) [1989-1987]
4-2.0L F/inj. (8V) SOHC B201I (J) [1987]
4-2.0L F/inj. (8V) SOHC B201I (J) CAN [1988]
4-2.0L F/inj. B201I (3) [1983-1981]
4-2.0L F/inj. B202L Turbo (4) [1983-1981]
4-2.0L F/inj. B202L Turbo (L) [1985]
4-2.0L F/inj. B202L Turbo (S) [1984]
4-2.0L F/inj. BI [1980]
4-2.0L F/inj. BSI Turbo [1980]
4-2.0L F/inj. Turbo [1979]
4-2.1L F/inj. (16V) B212I (E) [1994-1991]
4-2.3L F/inj. (16V) DOHC B234I (B) [1998-1994]
9000
4-2.0L F/inj. (16V) B202L Turbo (L) CAN [1990]
4-2.0L F/inj. (16V) DOHC B202L Turbo (L) [1990-1986]
4-2.0L F/inj. (8V) DOHC B202I (D) [1990-1987]
4-2.3L F/inj. (16V) DOHC B234E LP Turbo (U) [1997-1995]
4-2.3L F/inj. (16V) DOHC B234I (B) [1994-1990]
4-2.3L F/inj. (16V) DOHC B234L Turbo (M) [1998-1991]
4-2.3L F/inj. (16V) DOHC B234L Turbo (M) CAN [1991]
4-2.3L F/inj. (16V) DOHC B234R Turbo (R) [1998-1993]
9-3
4-2.0L F/inj. (16V) DOHC B204L Turbo (N) [1999]
4-2.0L F/inj. (16V) DOHC B204R Turbo (P) [1999]
4-2.0L F/inj. (16V) DOHC B205L Turbo [2001]
4-2.0L F/inj. (16V) DOHC B205L Turbo (H) [2000]
4-2.0L F/inj. (16V) DOHC B205R Turbo [2003-2000]
9-3 Viggen
4-2.3L F/inj. (16V) DOHC B235R Turbo [2002-1999]
95
3-0.8L 1 bbl. [1968-1965]
3-0.8L 3-1 bbl. [1968-1966]
V4-1.5L 1 bbl. [1970-1967]
V4-1.7L 1 bbl. [1973-1972]
9-5
4-2.3L F/inj. (16V) DOHC B235E LP Turbo [1999]
4-2.3L F/inj. (16V) DOHC B235E LP Turbo (E) [2006-2000]
4-2.3L F/inj. (16V) DOHC B235L Turbo [2005-2004]
4-2.3L F/inj. (16V) DOHC B235R Turbo [2005-2000]
4-2.3L F/inj. (16V) DOHC B235R Turbo (G) [2009-2006]
4-2.3L F/inj. (16V) DOHC Turbo [2007]
4-2.3L F/inj. (16V) DOHC Turbo (A) [2006]
V6-3.0L F/inj. (24V) DOHC B308E LP Turbo [1999]
V6-3.0L F/inj. (24V) DOHC B308E LP Turbo (Z) [2003-2000]
96
3-0.8L 1 bbl. [1968-1965]
3-0.8L 3-1 bbl. [1968-1966]
V4-1.5L 1 bbl. [1970-1967]
V4-1.7L 1 bbl. [1973-1972]
96 Sport
3-0.8L 1 bbl. [1965-1961]
99
4-2.0L 1 bbl. [1973]
4-2.0L 2 bbl. [1974]
4-2.0L F/inj. [1980-1972]
4-2.0L F/inj. Turbo [1978]
Monte Carlo
3-0.8L 3-1 bbl. [1967-1965]
V4-1.5L 1 bbl. [1967]
Shrike
3-0.8L 1 bbl. [1968-1967]
Sonnet
3-0.8L 1 bbl. [1968]
3-0.8L 3-1 bbl. [1968-1967]
V4-1.5L 1 bbl. [1969-1968]
V4-1.7L 1 bbl. [1974-1972]
SATURN
SC Series
4-1.9L F/inj. (16V) DOHC (7) [2002-1991]
4-1.9L F/inj. (8V) SOHC (8) [2002-1995]
4-1.9L F/inj. (8V) SOHC (9) [1994-1993]
SL Series
4-1.9L F/inj. (16V) DOHC (7) [2002-1991]
4-1.9L F/inj. (8V) SOHC (8) [2002-1995]
4-1.9L F/inj. (8V) SOHC (9) [1994-1991]
SW Series
4-1.9L F/inj. (16V) DOHC (7) [2001-1993]
4-1.9L F/inj. (8V) SOHC (8) [1999-1995]
4-1.9L F/inj. (8V) SOHC (9) [1994-1993]
SUZUKI
Esteem
4-1.6L F/inj. (16V) SOHC G16B (3) [2001-1995]
Forsa (Canada)
3-1.0L 2 bbl. (4) CAN [1988-1986]
3-1.0L 2 bbl. (S) CAN [1988-1986]
3-1.0L 2 bbl. CAN [1985]
3-1.0L F/inj. Turbo (4) CAN [1988]
3-1.0L Turbo (4) CAN [1987]
Swift
3-1.0L F/inj. SOHC SF310 (4) CAN [1994-1992]
4-1.3L F/inj. (16V) SOHC G13B (2) [2000-1998]
4-1.3L F/inj. (8V) SOHC (2) [1997-1995]
4-1.6L F/inj. (16V) DOHC CAN [1993]
4-1.6L F/inj. (16V) DOHC G16B CAN [1992]
4-1.6L F/inj. (8V) SOHC G16A CAN [1993-1992]
SUZUKI TRUCK
SA310 (Canada)
3-1.0L 2 bbl. SA310 CAN [1985]
Sidekick
4-1.6L F/inj. (16V) SOHC (0) [1997-1996]
4-1.6L F/inj. (16V) SOHC CAN [1997-1996]
4-1.6L F/inj. (16V) SOHC G16B [1998-1995]
4-1.6L F/inj. (8V) SOHC G16A [1995]
SJ410 (Canada)
3-1.0L 1 bbl. CAN [1982-1980]
4-1.0L 1 bbl. F10A [1985]
4-1.0L 1 bbl. F10A CAN [1984-1983]
SJ413
4-1.3L 1 bbl. SJ413 CAN [1985]
X-90
4-1.6L F/inj. (16V) SOHC G16B [1998-1996]
TOYOTA
Avalon
V6-3.0L F/inj. (24V) DOHC (B) [2003]
V6-3.0L F/inj. (24V) DOHC 1MZ-FE [2004-1995]
V6-3.0L F/inj. (24V) DOHC 1MZ-FE CAN [1996]
Camry
V6-2.5L F/inj. (24V) DOHC 2VZ-FE [1991-1988]
V6-3.0L F/inj. (24V) DOHC 1MZ-FE [2006-1994]
V6-3.0L F/inj. (24V) DOHC 1MZ-FE CAN [1995-1994]
V6-3.0L F/inj. (24V) DOHC 3VZ-FE [1993-1992]
V6-3.0L F/inj. (24V) DOHC 3VZ-FE CAN [1993]
V6-3.3L F/inj. (24V) DOHC 3MZ-FE [2006-2004]
Celica
4-1.8L F/inj. (16V) DOHC 2ZZ-GE [2002]
4-2.0L F/inj. (16V) DOHC 3S-GTE Turbo [1989-1988]
4-2.2L 2 bbl. 20R [1980-1977]
4-2.4L 2 bbl. 22R [1983-1981]
4-2.4L F/inj. 22R-EC [1985-1983]
6-2.6L F/inj. 4M-E [1980-1979]
6-2.8L F/inj. 5M-E [1981]
6-2.8L F/inj. 5M-GE [1986-1982]
Corona
4-2.2L 2 bbl. 20R [1980-1977]
4-2.4L 2 bbl. 22R [1982-1981]
Cressida
6-2.6L 2 bbl. 4M [1979-1978]
6-2.6L F/inj. 4M-E [1980]
6-2.8L F/inj. 5M-E [1982-1981]
6-2.8L F/inj. 5M-GE [1988-1983]
6-3.0L F/inj. (24V) DOHC 7M-GE [1992-1989]
6-3.0L F/inj. (24V) DOHC 7M-GE CAN [1992-1989]
Solara
V6-3.0L F/inj. (24V) DOHC 1MZ-FE [2003-1999]
V6-3.0L F/inj. (24V) QOHC 1MZ-FE [2002]
V6-3.3L F/inj. (24V) DOHC 3MZ-FE [2008-2004]
Supra
6-3.0L F/inj. (24V) DOHC 2JZ-GE [1998-1993]
6-3.0L F/inj. (24V) DOHC 2JZ-GTE Turbo [1998-1993]
6-3.0L F/inj. (24V) DOHC 7M-GE [1992-1986]
6-3.0L F/inj. (24V) DOHC 7M-GTE Turbo [1992-1987]
TOYOTA TRUCK
1 Ton
4-2.2L 2 bbl. 20R [1980-1977]
4-2.4L 2 bbl. 22R [1990-1981]
4-2.4L 2 bbl. 22R CAN [1986-1985]
4-2.4L F/inj. 22R-E [1995-1989]
4-2.4L F/inj. 22R-E CAN [1993]
4-2.4L F/inj. 22R-EC [1988-1984]
4-2.4L F/inj. 22R-EC CAN [1987]
4-2.4L F/inj. 22R-TEC [1987-1986]
4-2.4L F/inj. 22R-TEC Turbo [1988-1986]
V6-3.0L F/inj. (12V) SOHC 3VZ-E [1995-1988]
3/4 Ton
4-2.2L 2 bbl. 20R [1980-1977]
4-2.4L 2 bbl. 22R [1990-1981]
4-2.4L 2 bbl. 22R CAN [1986-1985]
4-2.4L F/inj. 22R-E [1995-1989]
4-2.4L F/inj. 22R-E CAN [1993]
4-2.4L F/inj. 22R-EC [1988-1984]
4-2.4L F/inj. 22R-EC CAN [1987]
4-2.4L F/inj. 22R-TEC [1987-1986]
4-2.4L F/inj. 22R-TEC Turbo [1988-1986]
V6-3.0L F/inj. (12V) SOHC 3VZ-E [1995-1988]
4 Runner
4-2.4L 2 bbl. 22R [1984]
4-2.4L F/inj. 22R-E [1995-1990]
4-2.4L F/inj. 22R-EC [1989-1985]
4-2.4L F/inj. 22R-TEC Turbo [1988-1985]
4-2.7L F/inj. (16V) DOHC 2TR-FE [2010]
4-2.7L F/inj. (16V) DOHC 3RZ-FE [2000-1996]
V6-3.0L F/inj. (12V) SOHC 3VZ-E [1995-1988]
V6-3.4L F/inj. (24V) DOHC 5VZ-FE [2002-1996]
V6-4.0L F/inj. (24V) DOHC 1GR-FE [2009-2003]
V8-4.7L F/inj. (32V) DOHC 2UZ-FE [2009-2003]
FJ Cruiser
V6-4.0L F/inj. (24V) DOHC 1GR-FE [2009-2007]
Highlander
V6-3.0L F/inj. (24V) DOHC 1MZ-FE [2003-2001]
V6-3.0L F/inj. (24V) QOHC 1MZ-FE [2002]
V6-3.3L F/inj. (24V) DOHC 3MZ-FE [2007-2005]
V6-3.3L F/inj. (24V) QOHC 3MZ-FE [2004]
Highlander Hybrid
V6-3.3L F/inj. (24V) DOHC 3MZ-FE [2010-2006]
Land Cruiser
6-4.5L F/inj. (24V) DOHC 1FZ-FE [1997-1994]
V8-4.7L F/inj. (32V) DOHC 2UZ-FE [2007-1998]
Pickup 1/2 Ton
4-2.2L 2 bbl. 20R [1980-1977]
4-2.4L 2 bbl. 22R [1990-1981]
4-2.4L 2 bbl. 22R CAN [1986-1985]
4-2.4L F/inj. 22R-E [1995-1989]
4-2.4L F/inj. 22R-E CAN [1993]
4-2.4L F/inj. 22R-EC [1988-1984]
4-2.4L F/inj. 22R-EC CAN [1987]
4-2.4L F/inj. 22R-TEC [1987-1986]
4-2.4L F/inj. 22R-TEC Turbo [1988-1986]
V6-3.0L F/inj. (12V) SOHC 3VZ-E [1995-1988]
Previa
4-2.4L F/inj. (16V) DOHC 2TZ-FE [1995-1991]
4-2.4L F/inj. (16V) DOHC 2TZ-FZE SC [1997-1994]
Sequoia
V8-4.7L F/inj. (32V) DOHC 2UZ-FE [2009-2001]
Sienna
V6-3.0L F/inj. (24V) DOHC 1MZ-FE [2003-1998]
V6-3.0L F/inj. (24V) QOHC 1MZ-FE [2002]
V6-3.3L F/inj. (24V) DOHC 3MZ-FE [2006-2004]
T100
4-2.7L F/inj. (16V) DOHC 3RZ-FE [1998-1994]
V6-3.0L F/inj. (12V) SOHC 3VZ-E [1994-1993]
V6-3.4L F/inj. (24V) DOHC 5VZ-FE [1998-1995]
Tacoma
4-2.4L F/inj. (16V) DOHC 2RZ-FE [2001-1995]
4-2.4L F/inj. (16V) DOHC 2RZ-FE (N) [2004-2002]
4-2.7L F/inj. (16V) DOHC 2TR-FE [2013-2005]
4-2.7L F/inj. (16V) DOHC 3RZ-FE [2004-1995]
V6-3.4L F/inj. (24V) DOHC 5VZ-FE [2004-1995]
V6-4.0L F/inj. (24V) DOHC 1GR-FE [2013-2005]
Tundra
V6-3.4L F/inj. (24V) DOHC 5VZ-FE [2001-2000]
V6-3.4L F/inj. (24V) DOHC 5VZ-FE (1) [2004-2002]
V6-4.0L F/inj. (24V) DOHC 1GR-FE [2013-2005]
V8-4.7L F/inj. (32V) DOHC 2UZ-FE [2009-2000]
VOLKSWAGEN TRUCK
Routan
V6-3.8L F/inj. CGUA (1) [2010-2009]
YUGO
Cabrio
4-1.3L F/inj. (6) [1992-1990]
GV
4-1.1L 2 bbl. (2) [1989-1986]
4-1.3L F/inj. (6) [1992-1990]
GVL
4-1.1L 2 bbl. (2) [1989-1988]
GVS
4-1.1L 2 bbl. (2) [1988]
GVX
4-1.3L 2 bbl. (5) [1989-1987]
Applications Where Used
ALFA ROMEO
164
V6-3.0L F/inj. (24V) DOHC [1995-1994]
ASUNA
GT (Canada)
4-1.6L F/inj. (6) CAN [1993]
SE (Canada)
4-1.6L F/inj. (6) CAN [1993]
CHEVROLET
Metro
3-1.0L F/inj. (6) [2000-1998]
4-1.3L F/inj. (2) [2001-1998]
Metro (Canada)
4-1.3L F/inj. (8V) SOHC (9) CAN [1992]
Sprint
3-1.0L 2 bbl. (5) [1988-1986]
3-1.0L 2 bbl. (M) [1985]
3-1.0L F/inj. (6) CAN [1992-1989]
3-1.0L F/inj. Turbo (2) [1988-1987]
3-1.0L F/inj. Turbo (2) CAN [1992-1989]
CHEVROLET/GMC TRUCK
Tracker
4-1.6L F/inj. (16V) SOHC (6) [1999]
4-1.6L F/inj. (6) [1998]
Tracker (Canada)
CHRYSLER
Cirrus
4-2.0L F/inj. (16V) SOHC (C) [2000]
4-2.4L F/inj. (16V) DOHC (X) [2000-1995]
Daytona (Canada)
4-2.2L F/inj. Turbo (A) CAN [1989-1987]
4-2.2L F/inj. Turbo (C) CAN [1990]
4-2.2L F/inj. Turbo (E) CAN [1988-1984]
4-2.5L F/inj. (K) CAN [1990-1987]
4-2.5L F/inj. Turbo (J) CAN [1989]
V6-3.0L F/inj. (3) CAN [1990]
Dynasty (Canada)
4-2.5L F/inj. (K) CAN [1990-1988]
V6-3.0L F/inj. (3) CAN [1990-1988]
V6-3.3L F/inj. (R) CAN [1990]
E-Class
4-2.2L 2 bbl. (C) [1983]
4-2.2L F/inj. (D) [1984]
4-2.2L F/inj. Turbo (E) [1984]
Executive Limousine
4-2.2L F/inj. Turbo (E) [1986]
4-2.5L F/inj. (K) [1986]
Imperial
V6-3.3L F/inj. (R) [1990]
Laser
4-2.2L F/inj. (D) [1986-1984]
4-2.2L F/inj. Turbo (E) [1986-1984]
4-2.5L F/inj. (K) [1986]
LeBaron - K Body
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1984-1983]
4-2.2L F/inj. (D) [1988-1984]
4-2.2L F/inj. Turbo (E) [1988-1984]
4-2.5L F/inj. (K) [1988-1986]
LeBaron GTS
4-2.2L F/inj. (D) [1989-1985]
4-2.2L F/inj. T/Intrcld (A) [1989]
4-2.2L F/inj. Turbo (E) [1988-1985]
4-2.5L F/inj. (K) [1989-1986]
4-2.5L F/inj. Turbo (J) [1989]
LeBaron-A body 4 door sedan
V6-3.0L F/inj. (3) [1990]
LeBaron-J body 2 door coupe
4-2.2L F/inj. (D) [1989-1987]
4-2.2L F/inj. Turbo (C) [1990]
4-2.2L F/inj. Turbo (E) [1988-1987]
4-2.5L F/inj. (K) [1990-1987]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990]
Neon
4-2.0L F/inj. (16V) (C) CAN [2000]
Neon (Canada)
4-2.0L F/inj. (16V) (C) CAN [2002]
4-2.0L F/inj. (16V) SOHC (C) [2001]
New Yorker
4-2.2L 2 bbl. (C) [1983]
4-2.2L F/inj. (D) [1984]
4-2.2L F/inj. Turbo (E) [1988-1984]
4-2.5L F/inj. (K) [1987-1986]
V6-3.0L F/inj. (3) [1989-1988]
V6-3.3L F/inj. (R) [1990]
PT Cruiser
4-2.4L F/inj. (16V) DOHC (B) [2008-2001]
4-2.4L F/inj. (16V) DOHC (X) [2008-2005]
4-2.4L F/inj. EDZ (9) [2010-2009]
Sebring 2 door coupe
4-2.4L F/inj. (16V) DOHC (X) [2002-2001]
Sebring 4 door sedan and convertible
4-2.4L F/inj. (16V) DOHC (J) [2005]
4-2.4L F/inj. (16V) DOHC (PZEV) (J) [2004]
4-2.4L F/inj. (16V) DOHC (X) [2006-1996]
TC Maserati
4-2.2L F/inj. (16V) T/Intrcld (R) [1989]
4-2.2L F/inj. (8V) T/Intrcld (P) [1989]
4-2.2L F/inj. Turbo (R) [1990]
V6-3.0L F/inj. (S) [1990]
Town & Country
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1984-1983]
4-2.2L F/inj. Turbo (E) [1988-1985]
4-2.5L F/inj. (K) [1988-1986]
CHRYSLER TRUCK
Pacifica
V6-3.8L F/inj. OHV (L) [2008]
Town & Country APV
V6-3.3L F/inj. (H) [2008]
V6-3.3L F/inj. (R) [2007-1990]
V6-3.3L F/inj. Flex Fuel EGV (E) [2010-2009]
V6-3.3L F/inj. Flex Fuel EGV (H) [2008]
V6-3.8L F/inj. (1) [2009]
V6-3.8L F/inj. (P) [2008]
V6-3.8L F/inj. EGL (1) [2010]
V6-3.8L F/inj. OHV (L) [2007]
V6-4.0L F/inj. (24V) SOHC EGQ (X) [2010]
Voyager
4-2.4L F/inj. (16V) DOHC (B) [2003-2000]
DODGE
400
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1983]
600
4-2.2L 2 bbl. (C) [1984-1983]
4-2.2L F/inj. (D) [1988-1984]
4-2.2L F/inj. Turbo (E) [1988-1984]
4-2.5L F/inj. (K) [1988-1986]
Aries
4-135CID 2 bbl. (B) [1981]
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1985-1983]
4-2.2L F/inj. (D) [1989-1985]
4-2.5L F/inj. (K) [1989-1986]
Charger
4-1.7L 2 bbl. (B) [1983]
4-2.2L 2 bbl. (8) [1984-1983]
4-2.2L 2 bbl. (C) [1984-1983]
4-2.2L 2 bbl. (F) [1983]
Daytona
4-2.2L F/inj. (D) [1986-1984]
4-2.2L F/inj. T/Intrcld (A) [1989-1987]
4-2.2L F/inj. Turbo (C) [1990]
4-2.2L F/inj. Turbo (E) [1988-1984]
4-2.5L F/inj. (K) [1990-1986]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990]
Dynasty
4-2.5L F/inj. (K) [1990-1988]
V6-3.0L F/inj. (3) [1990-1988]
V6-3.3L F/inj. (R) [1990]
Lancer
4-2.2L F/inj. (D) [1989-1985]
4-2.2L F/inj. T/Intrcld (A) [1989-1988]
4-2.2L F/inj. Turbo (E) [1988-1985]
4-2.5L F/inj. (K) [1989-1986]
4-2.5L F/inj. Turbo (J) [1989]
Neon
4-2.0L F/inj. (16V) DOHC (Y) [1999-1995]
4-2.0L F/inj. (16V) SOHC (C) [2005-1995]
4-2.0L F/inj. (16V) SOHC (F) [2004-2001]
Omni
4-1.6L 2 bbl. (A) [1986-1983]
4-1.7L 2 bbl. (A) [1982]
4-1.7L 2 bbl. (B) [1983]
4-105CID 2 bbl. (A) [1981-1979]
4-135CID 2 bbl. (B) [1981]
4-2.2L 2 bbl. (8) [1986-1984]
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1987-1983]
4-2.2L F/inj. (D) [1990-1988]
4-2.2L F/inj. Turbo (E) [1985]
Shadow
4-2.2L F/inj. (D) [1990-1987]
4-2.2L F/inj. Turbo (A) [1989]
4-2.2L F/inj. Turbo (C) [1990]
4-2.2L F/inj. Turbo (E) [1988-1987]
4-2.5L F/inj. (K) [1990-1988]
4-2.5L F/inj. Turbo (J) [1990-1989]
Spirit
4-2.5L F/inj. (K) [1990-1989]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990-1989]
Stratus
4-2.0L F/inj. (16V) SOHC (C) [2000-1995]
4-2.4L F/inj. (16V) DOHC (X) [2002-1995]
Stratus 4 door sedan
4-2.4L F/inj. (16V) DOHC (PZEV) (J) [2006-2004]
4-2.4L F/inj. (16V) DOHC (X) [2006-2003]
SX 2.0 (Canadian)
4-2.0L F/inj. (16V) SOHC (C) [2005-2003]
DODGE TRUCK
B100-350
V6-3.9L F/inj. (X) [1990-1988]
Caravan
4-2.2L 2 bbl. (C) [1987-1984]
4-2.4L F/inj. (16V) DOHC (B) [2007-1996]
4-2.5L F/inj. (K) [1990-1987]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990-1987]
V6-3.3L F/inj. (R) [2007-1990]
V6-3.3L F/inj. Flex Fuel EGV (E) [2007]
V6-3.8L F/inj. (L) [2007]
D100-350
V6-3.9L F/inj. (X) [1990-1988]
Dakota
4-2.2L 2 bbl. (C) [1988-1987]
4-2.5L F/inj. (G) [1990-1989]
V6-3.9L 2 bbl. (M) [1987]
V6-3.9L F/inj. (X) [1990-1988]
Grand Caravan
4-2.2L 2 bbl. (C) [1987]
4-2.4L F/inj. (16V) DOHC (B) [2007-1996]
4-2.5L F/inj. (K) [1990-1987]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990-1987]
V6-3.3L F/inj. (H) [2008]
V6-3.3L F/inj. (R) [2007-1990]
V6-3.3L F/inj. Flex Fuel (H) [2008]
V6-3.3L F/inj. Flex Fuel EGV (E) [2010-2007]
V6-3.8L F/inj. (1) [2009]
V6-3.8L F/inj. (L) [2007]
V6-3.8L F/inj. (P) [2008]
V6-3.8L F/inj. EGL (1) [2010]
V6-4.0L F/inj. (24V) SOHC EGQ (X) [2010]
Mini Ram
4-2.2L 2 bbl. (C) [1987-1984]
4-2.5L F/inj. (K) [1988-1987]
V6-3.0L F/inj. (3) [1988-1987]
Rampage
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1984-1983]
Royal Mini Ram
4-2.2L 2 bbl. (C) [1987-1984]
V6-3.0L F/inj. (3) [1987]
W100-350
V6-3.9L F/inj. (X) [1990-1989]
FORD
C-MAX
4-1.6L F/inj. [2013]
4-2.5L F/inj. (16V) DOHC (A) [2013]
C-MAX Hybrid
4-2.0L F/inj. (U) [2013]
Crown Victoria
V8-4.6L F/inj. (16V) SOHC Flex Fuel (V) [2011-2009]
Fiesta
4-1.6L F/inj. (16V) DOHC (J) [2013-2011]
Focus
4-2.0L F/inj. (16V) DOHC (2) [2013-2012]
4-2.0L F/inj. (16V) DOHC (9) [2012]
4-2.0L F/inj. (16V) DOHC (N) [2005]
4-2.0L F/inj. (16V) DOHC (PZEV) (N) [2008]
4-2.0L F/inj. (16V) DOHC (SULEV) (N) [2008]
4-2.0L F/inj. (16V) DOHC DURATEC 20 (N) [2011-2009]
4-2.0L F/inj. (16V) DOHC DURATEC 20E (N) [2011-2009]
4-2.0L F/inj. (16V) DOHC ECOBOOST Turbo (9) [2013]
4-2.0L F/inj. (16V) DOHC Flex Fuel (2) [2013-2012]
4-2.0L F/inj. (PZEV) (N) [2007-2006]
4-2.0L F/inj. (SULEV) (N) [2007-2006]
4-2.3L F/inj. (16V) DOHC (Z) [2007-2003]
Fusion
4-1.6L D.I. ECOBOOST Turbo (R) [2013]
4-2.0L D.I. ECOBOOST Turbo (9) [2013]
4-2.3L F/inj. (16V) DOHC (Z) [2008-2006]
4-2.5L F/inj. (16V) DOHC (7) [2013]
4-2.5L F/inj. (16V) DOHC (A) [2012-2010]
Fusion Hybrid
4-2.0L D.I. (U) [2013]
4-2.5L F/inj. (16V) DOHC (3) [2012-2010]
Taurus
4-2.0L D.I. ECOBOOST Turbo (9) [2013]
FORD TRUCK
Edge
4-2.0L D.I. Turbo (9) [2013]
4-2.0L F/inj. Turbo (9) [2012]
Escape
4-1.6L D.I. (16V) Turbo (X) [2013]
4-2.0L D.I. Turbo (9) [2013]
4-2.3L F/inj. (16V) DOHC (PZEV) (Z) [2008-2005]
4-2.5L F/inj. (16V) DOHC (7) [2013-2009]
Escape Hybrid
4-2.5L F/inj. (16V) DOHC (3) [2012-2009]
Explorer
4-2.0L D.I. (16V) DOHC Turbo (9) [2013-2012]
Ranger
4-2.3L F/inj. (16V) DOHC (D) [2011-2004]
Transit Connect
4-2.0L F/inj. (16V) DOHC (N) [2013-2010]
4-2.0L F/inj. (16V) DOHC CNG [2013]
GEO
Metro
3-1.0L F/inj. (6) [1997-1989]
3-1.0L F/inj. (6V) SOHC (6) [1994]
4-1.3L F/inj. (3) CAN [1993]
4-1.3L F/inj. (8V) SOHC (3) CAN [1994-1992]
4-1.3L F/inj. (9) [1997-1995]
GEO TRUCK
Tracker
4-1.6L F/inj. (16V) SOHC (6) [1997-1994]
4-1.6L F/inj. (8V) SOHC (U) [1995-1990]
Tracker (Canada)
4-1.6L F/inj. (8V) SOHC (U) CAN [1989]
JEEP TRUCK
Liberty
4-2.4L F/inj. (1) [2005-2002]
TJ (Canada)
4-2.4L F/inj. (1) [2006-2003]
Wrangler
4-2.4L F/inj. (1) [2006-2003]
V6-3.8L F/inj. (1) [2009-2007]
V6-3.8L F/inj. EGT (1) [2011-2010]
LAND ROVER TRUCK
LR2
4-2.0L D.I. (16V) DOHC Turbo (G) [2013]
Range Rover Evoque
4-2.0L D.I. (16V) DOHC Turbo (G) [2013-2012]
LEXUS
ES250
V6-2.5L F/inj. (24V) DOHC 2VZ-FE [1991-1990]
ES300
V6-3.0L F/inj. (24V) DOHC 1MZ-FE [1999-1994]
V6-3.0L F/inj. (24V) DOHC 3VZ-FE [1993-1992]
V6-3.0L F/inj. (24V) QOHC 1MZ-FE [2003-2000]
ES330
V6-3.3L F/inj. (24V) QOHC 3MZ-FE [2006-2004]
GS300
6-3.0L F/inj. (24V) DOHC 2JZ-GE [2005-1993]
GS400
V8-4.0L F/inj. (32V) DOHC 1UZ-FE [2000-1998]
GS430
V8-4.3L F/inj. (32V) QOHC 3UZFE [2007-2001]
IS300
6-3.0L F/inj. (24V) DOHC 2JZ-GE [2005-2001]
LS400
V8-4.0L F/inj. (32V) DOHC 1UZ-FE [2000-1990]
LS430
V8-4.3L F/inj. (32V) QOHC 3UZFE [2006-2001]
SC300
6-3.0L F/inj. (24V) DOHC 2JZ-GE [2000-1992]
SC400
V8-4.0L F/inj. (32V) DOHC 1UZ-FE [2000-1992]
SC430
V8-4.3L F/inj. (32V) QOHC 3UZFE [2010-2002]
LEXUS TRUCK
GX470
V8-4.7L F/inj. (32V) QOHC 2UZ-FE [2009-2003]
LX450
6-4.5L F/inj. (24V) DOHC 1FZ-FE [1997]
LX470
V8-4.7L F/inj. (32V) DOHC 2UZ-FE [1999-1998]
V8-4.7L F/inj. (32V) QOHC 2UZ-FE [2007-2000]
RX300
V6-3.0L F/inj. (24V) DOHC 1MZ-FE [1999]
V6-3.0L F/inj. (24V) QOHC 1MZ-FE [2003-2000]
RX330
V6-3.3L F/inj. (24V) QOHC 3MZ-FE [2006-2004]
RX400h Hybrid
V6-3.3L F/inj. (24V) DOHC 3MZ-FE [2008-2006]
LINCOLN
MKZ
4-2.0L D.I. Turbo (9) [2013]
MKZ Hybrid
4-2.0L D.I. (U) [2013]
4-2.5L F/inj. (16V) DOHC (3) [2012-2011]
MAZDA
3
4-2.0L F/inj. (16V) DOHC (F) [2013-2004]
4-2.0L F/inj. (16V) DOHC (G) [2012-2009]
4-2.0L F/inj. (16V) DOHC (PZEV) (G) [2013-2008]
4-2.3L D.I. (16V) DOHC Turbo (3) [2013-2010]
4-2.3L D.I. (16V) DOHC Turbo (4) [2013-2010]
4-2.5L F/inj. (16V) DOHC (5) [2013-2010]
4-2.5L F/inj. (16V) DOHC (6) [2012-2010]
4-2.5L F/inj. (PZEV) (6) [2013]
6
4-2.5L F/inj. (16V) DOHC (A) [2010-2009]
4-2.5L F/inj. (16V) DOHC (H) [2013-2010]
MX-5 Miata
4-2.0L F/inj. (16V) DOHC (F) [2013-2006]
MAZDA TRUCK
5
4-2.3L F/inj. (16V) DOHC (3) [2010-2009]
4-2.3L F/inj. (16V) DOHC (L) [2010]
4-2.5L F/inj. (16V) DOHC (L) [2013-2012]
B2300
4-2.3L F/inj. (16V) DOHC (D) [2010-2004]
CX-7
4-2.3L D.I. (16V) DOHC MZR Turbo (3) [2012-2010]
4-2.3L D.I. (16V) DOHC MZR Turbo (L) [2012-2010]
4-2.5L F/inj. (5) [2012-2010]
4-2.5L F/inj. (PZEV) (M) [2012-2010]
Tribute
4-2.3L F/inj. (16V) DOHC (Z) [2008-2005]
4-2.5L F/inj. (16V) DOHC (7) [2011-2010]
Tribute Hybrid
4-2.5L F/inj. (16V) DOHC (3) [2010]
MERCURY
Mariner
4-2.3L F/inj. (16V) DOHC (Z) [2008-2005]
4-2.5L F/inj. (16V) DOHC (7) [2011-2009]
Mariner Hybrid
4-2.5L F/inj. (16V) DOHC (3) [2011-2010]
Milan
4-2.3L F/inj. (16V) DOHC (Z) [2008-2006]
4-2.5L F/inj. (16V) DOHC (A) [2011-2010]
Milan Hybrid
4-2.5L F/inj. (16V) DOHC (3) [2011-2010]
PLYMOUTH
Acclaim
4-2.5L F/inj. (K) [1990-1989]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990-1989]
Breeze
4-2.0L F/inj. (16V) SOHC (C) [2000-1996]
4-2.4L F/inj. (16V) DOHC (X) [2000-1997]
4-2.4L F/inj. (16V) DOHC (X) CAN [1996]
Caravelle
4-2.2L (C) CAN [1988-1987]
4-2.2L F/inj. (D) [1988-1985]
4-2.2L F/inj. (D) CAN [1985]
4-2.2L F/inj. Turbo (E) [1988-1985]
4-2.2L F/inj. Turbo (E) CAN [1985]
4-2.5L F/inj. (K) [1988-1986]
Caravelle (Canada)
4-2.2L 2 bbl. (C) CAN [1984-1983]
4-2.2L F/inj. (D) CAN [1984]
4-2.2L F/inj. Turbo (E) CAN [1984]
Expo
4-2.2L 2 bbl. (C) CAN [1987]
4-2.2L 2 bbl. (D) CAN [1989]
4-2.2L F/inj. (D) CAN [1988]
Horizon
4-1.6L 2 bbl. (A) [1986-1983]
4-1.7L 2 bbl. (A) [1982]
4-1.7L 2 bbl. (B) [1983]
4-105CID 2 bbl. (A) [1981-1978]
4-135CID 2 bbl. (B) [1981]
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1987-1983]
4-2.2L 2 bbl. HO (8) [1986-1984]
4-2.2L F/inj. (D) [1990-1988]
Neon
4-2.0L F/inj. (16V) DOHC (Y) [1999-1995]
4-2.0L F/inj. (16V) SOHC (C) [2001-1995]
Reliant
4-135CID 2 bbl. (B) [1981]
4-2.2L 2 bbl. (B) [1982]
4-2.2L 2 bbl. (C) [1985-1983]
4-2.2L F/inj. (D) [1989-1985]
4-2.5L F/inj. (K) [1989-1986]
Sundance
4-2.2L F/inj. (D) [1990-1987]
4-2.2L F/inj. Turbo (E) [1988-1987]
4-2.5L F/inj. (K) [1990-1988]
4-2.5L F/inj. Turbo (J) [1990-1989]
Turismo
4-1.6L 2 bbl. (A) CAN [1985-1984]
PLYMOUTH TRUCK
Grand Voyager
4-2.4L F/inj. (16V) DOHC (B) [2000-1996]
4-2.5L F/inj. (K) [1990-1988]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990-1988]
V6-3.3L F/inj. (R) [1990]
Scamp
4-2.2L 2 bbl. (C) [1983]
Voyager
4-2.2L 2 bbl. (C) [1987-1984]
4-2.4L F/inj. (16V) DOHC (B) [2000-1996]
4-2.5L F/inj. (K) [1990-1987]
4-2.5L F/inj. Turbo (J) [1990-1989]
V6-3.0L F/inj. (3) [1990-1987]
V6-3.3L F/inj. (R) [1990]
PONTIAC
Firefly (Canada)
3-1.0L (6) CAN [1990-1989]
3-1.0L 2 bbl. (5) CAN [1988-1985]
3-1.0L 2 bbl. (M) CAN [1985]
3-1.0L F/inj. (6) CAN [2000-1991]
3-1.0L F/inj. Turbo (2) CAN [1991-1987]
4-1.3L F/inj. (2) CAN [2000-1998]
4-1.3L F/inj. (9) CAN [1997-1994]
PONTIAC TRUCK
Vibe
4-1.8L F/inj. (16V) DOHC 2ZZ-GE (L) [2005]
SAAB
900
4-2.0L F/inj. [1979]
4-2.0L F/inj. (16V) B202L Turbo (L) CAN [1991]
4-2.0L F/inj. (16V) B202R Turbo (T) [1994-1993]
4-2.0L F/inj. (16V) DOHC B202I (D) [1990-1986]
4-2.0L F/inj. (16V) DOHC B202L Turbo (L) [1994-1986]
4-2.0L F/inj. (16V) DOHC B204L Turbo (N) [1998-1994]
4-2.0L F/inj. (8V) B201I (J) [1986-1984]
4-2.0L F/inj. (8V) DOHC B202I (D) [1989-1987]
4-2.0L F/inj. (8V) SOHC B201I (J) [1987]
4-2.0L F/inj. (8V) SOHC B201I (J) CAN [1988]
4-2.0L F/inj. B201I (3) [1983-1981]
4-2.0L F/inj. B202L Turbo (4) [1983-1981]
4-2.0L F/inj. B202L Turbo (L) [1985]
4-2.0L F/inj. B202L Turbo (S) [1984]
4-2.0L F/inj. BI [1980]
4-2.0L F/inj. BSI Turbo [1980]
4-2.0L F/inj. Turbo [1979]
4-2.1L F/inj. (16V) B212I (E) [1994-1991]
4-2.3L F/inj. (16V) DOHC B234I (B) [1998-1994]
9000
4-2.0L F/inj. (16V) B202L Turbo (L) CAN [1990]
4-2.0L F/inj. (16V) DOHC B202L Turbo (L) [1990-1986]
4-2.0L F/inj. (8V) DOHC B202I (D) [1990-1987]
4-2.3L F/inj. (16V) DOHC B234E LP Turbo (U) [1997-1995]
4-2.3L F/inj. (16V) DOHC B234I (B) [1994-1990]
4-2.3L F/inj. (16V) DOHC B234L Turbo (M) [1998-1991]
4-2.3L F/inj. (16V) DOHC B234L Turbo (M) CAN [1991]
4-2.3L F/inj. (16V) DOHC B234R Turbo (R) [1998-1993]
9-3
4-2.0L F/inj. (16V) DOHC B204L Turbo (N) [1999]
4-2.0L F/inj. (16V) DOHC B204R Turbo (P) [1999]
4-2.0L F/inj. (16V) DOHC B205L Turbo [2001]
4-2.0L F/inj. (16V) DOHC B205L Turbo (H) [2000]
4-2.0L F/inj. (16V) DOHC B205R Turbo [2003-2000]
9-3 Viggen
4-2.3L F/inj. (16V) DOHC B235R Turbo [2002-1999]
95
3-0.8L 1 bbl. [1968-1965]
3-0.8L 3-1 bbl. [1968-1966]
V4-1.5L 1 bbl. [1970-1967]
V4-1.7L 1 bbl. [1973-1972]
9-5
4-2.3L F/inj. (16V) DOHC B235E LP Turbo [1999]
4-2.3L F/inj. (16V) DOHC B235E LP Turbo (E) [2006-2000]
4-2.3L F/inj. (16V) DOHC B235L Turbo [2005-2004]
4-2.3L F/inj. (16V) DOHC B235R Turbo [2005-2000]
4-2.3L F/inj. (16V) DOHC B235R Turbo (G) [2009-2006]
4-2.3L F/inj. (16V) DOHC Turbo [2007]
4-2.3L F/inj. (16V) DOHC Turbo (A) [2006]
V6-3.0L F/inj. (24V) DOHC B308E LP Turbo [1999]
V6-3.0L F/inj. (24V) DOHC B308E LP Turbo (Z) [2003-2000]
96
3-0.8L 1 bbl. [1968-1965]
3-0.8L 3-1 bbl. [1968-1966]
V4-1.5L 1 bbl. [1970-1967]
V4-1.7L 1 bbl. [1973-1972]
96 Sport
3-0.8L 1 bbl. [1965-1961]
99
4-2.0L 1 bbl. [1973]
4-2.0L 2 bbl. [1974]
4-2.0L F/inj. [1980-1972]
4-2.0L F/inj. Turbo [1978]
Monte Carlo
3-0.8L 3-1 bbl. [1967-1965]
V4-1.5L 1 bbl. [1967]
Shrike
3-0.8L 1 bbl. [1968-1967]
Sonnet
3-0.8L 1 bbl. [1968]
3-0.8L 3-1 bbl. [1968-1967]
V4-1.5L 1 bbl. [1969-1968]
V4-1.7L 1 bbl. [1974-1972]
SATURN
SC Series
4-1.9L F/inj. (16V) DOHC (7) [2002-1991]
4-1.9L F/inj. (8V) SOHC (8) [2002-1995]
4-1.9L F/inj. (8V) SOHC (9) [1994-1993]
SL Series
4-1.9L F/inj. (16V) DOHC (7) [2002-1991]
4-1.9L F/inj. (8V) SOHC (8) [2002-1995]
4-1.9L F/inj. (8V) SOHC (9) [1994-1991]
SW Series
4-1.9L F/inj. (16V) DOHC (7) [2001-1993]
4-1.9L F/inj. (8V) SOHC (8) [1999-1995]
4-1.9L F/inj. (8V) SOHC (9) [1994-1993]
SUZUKI
Esteem
4-1.6L F/inj. (16V) SOHC G16B (3) [2001-1995]
Forsa (Canada)
3-1.0L 2 bbl. (4) CAN [1988-1986]
3-1.0L 2 bbl. (S) CAN [1988-1986]
3-1.0L 2 bbl. CAN [1985]
3-1.0L F/inj. Turbo (4) CAN [1988]
3-1.0L Turbo (4) CAN [1987]
Swift
3-1.0L F/inj. SOHC SF310 (4) CAN [1994-1992]
4-1.3L F/inj. (16V) SOHC G13B (2) [2000-1998]
4-1.3L F/inj. (8V) SOHC (2) [1997-1995]
4-1.6L F/inj. (16V) DOHC CAN [1993]
4-1.6L F/inj. (16V) DOHC G16B CAN [1992]
4-1.6L F/inj. (8V) SOHC G16A CAN [1993-1992]
SUZUKI TRUCK
SA310 (Canada)
3-1.0L 2 bbl. SA310 CAN [1985]
Sidekick
4-1.6L F/inj. (16V) SOHC (0) [1997-1996]
4-1.6L F/inj. (16V) SOHC CAN [1997-1996]
4-1.6L F/inj. (16V) SOHC G16B [1998-1995]
4-1.6L F/inj. (8V) SOHC G16A [1995]
SJ410 (Canada)
3-1.0L 1 bbl. CAN [1982-1980]
4-1.0L 1 bbl. F10A [1985]
4-1.0L 1 bbl. F10A CAN [1984-1983]
SJ413
4-1.3L 1 bbl. SJ413 CAN [1985]
X-90
4-1.6L F/inj. (16V) SOHC G16B [1998-1996]
TOYOTA
Avalon
V6-3.0L F/inj. (24V) DOHC (B) [2003]
V6-3.0L F/inj. (24V) DOHC 1MZ-FE [2004-1995]
V6-3.0L F/inj. (24V) DOHC 1MZ-FE CAN [1996]
Camry
V6-2.5L F/inj. (24V) DOHC 2VZ-FE [1991-1988]
V6-3.0L F/inj. (24V) DOHC 1MZ-FE [2006-1994]
V6-3.0L F/inj. (24V) DOHC 1MZ-FE CAN [1995-1994]
V6-3.0L F/inj. (24V) DOHC 3VZ-FE [1993-1992]
V6-3.0L F/inj. (24V) DOHC 3VZ-FE CAN [1993]
V6-3.3L F/inj. (24V) DOHC 3MZ-FE [2006-2004]
Celica
4-1.8L F/inj. (16V) DOHC 2ZZ-GE [2002]
4-2.0L F/inj. (16V) DOHC 3S-GTE Turbo [1989-1988]
4-2.2L 2 bbl. 20R [1980-1977]
4-2.4L 2 bbl. 22R [1983-1981]
4-2.4L F/inj. 22R-EC [1985-1983]
6-2.6L F/inj. 4M-E [1980-1979]
6-2.8L F/inj. 5M-E [1981]
6-2.8L F/inj. 5M-GE [1986-1982]
Corona
4-2.2L 2 bbl. 20R [1980-1977]
4-2.4L 2 bbl. 22R [1982-1981]
Cressida
6-2.6L 2 bbl. 4M [1979-1978]
6-2.6L F/inj. 4M-E [1980]
6-2.8L F/inj. 5M-E [1982-1981]
6-2.8L F/inj. 5M-GE [1988-1983]
6-3.0L F/inj. (24V) DOHC 7M-GE [1992-1989]
6-3.0L F/inj. (24V) DOHC 7M-GE CAN [1992-1989]
Solara
V6-3.0L F/inj. (24V) DOHC 1MZ-FE [2003-1999]
V6-3.0L F/inj. (24V) QOHC 1MZ-FE [2002]
V6-3.3L F/inj. (24V) DOHC 3MZ-FE [2008-2004]
Supra
6-3.0L F/inj. (24V) DOHC 2JZ-GE [1998-1993]
6-3.0L F/inj. (24V) DOHC 2JZ-GTE Turbo [1998-1993]
6-3.0L F/inj. (24V) DOHC 7M-GE [1992-1986]
6-3.0L F/inj. (24V) DOHC 7M-GTE Turbo [1992-1987]
TOYOTA TRUCK
1 Ton
4-2.2L 2 bbl. 20R [1980-1977]
4-2.4L 2 bbl. 22R [1990-1981]
4-2.4L 2 bbl. 22R CAN [1986-1985]
4-2.4L F/inj. 22R-E [1995-1989]
4-2.4L F/inj. 22R-E CAN [1993]
4-2.4L F/inj. 22R-EC [1988-1984]
4-2.4L F/inj. 22R-EC CAN [1987]
4-2.4L F/inj. 22R-TEC [1987-1986]
4-2.4L F/inj. 22R-TEC Turbo [1988-1986]
V6-3.0L F/inj. (12V) SOHC 3VZ-E [1995-1988]
3/4 Ton
4-2.2L 2 bbl. 20R [1980-1977]
4-2.4L 2 bbl. 22R [1990-1981]
4-2.4L 2 bbl. 22R CAN [1986-1985]
4-2.4L F/inj. 22R-E [1995-1989]
4-2.4L F/inj. 22R-E CAN [1993]
4-2.4L F/inj. 22R-EC [1988-1984]
4-2.4L F/inj. 22R-EC CAN [1987]
4-2.4L F/inj. 22R-TEC [1987-1986]
4-2.4L F/inj. 22R-TEC Turbo [1988-1986]
V6-3.0L F/inj. (12V) SOHC 3VZ-E [1995-1988]
4 Runner
4-2.4L 2 bbl. 22R [1984]
4-2.4L F/inj. 22R-E [1995-1990]
4-2.4L F/inj. 22R-EC [1989-1985]
4-2.4L F/inj. 22R-TEC Turbo [1988-1985]
4-2.7L F/inj. (16V) DOHC 2TR-FE [2010]
4-2.7L F/inj. (16V) DOHC 3RZ-FE [2000-1996]
V6-3.0L F/inj. (12V) SOHC 3VZ-E [1995-1988]
V6-3.4L F/inj. (24V) DOHC 5VZ-FE [2002-1996]
V6-4.0L F/inj. (24V) DOHC 1GR-FE [2009-2003]
V8-4.7L F/inj. (32V) DOHC 2UZ-FE [2009-2003]
FJ Cruiser
V6-4.0L F/inj. (24V) DOHC 1GR-FE [2009-2007]
Highlander
V6-3.0L F/inj. (24V) DOHC 1MZ-FE [2003-2001]
V6-3.0L F/inj. (24V) QOHC 1MZ-FE [2002]
V6-3.3L F/inj. (24V) DOHC 3MZ-FE [2007-2005]
V6-3.3L F/inj. (24V) QOHC 3MZ-FE [2004]
Highlander Hybrid
V6-3.3L F/inj. (24V) DOHC 3MZ-FE [2010-2006]
Land Cruiser
6-4.5L F/inj. (24V) DOHC 1FZ-FE [1997-1994]
V8-4.7L F/inj. (32V) DOHC 2UZ-FE [2007-1998]
Pickup 1/2 Ton
4-2.2L 2 bbl. 20R [1980-1977]
4-2.4L 2 bbl. 22R [1990-1981]
4-2.4L 2 bbl. 22R CAN [1986-1985]
4-2.4L F/inj. 22R-E [1995-1989]
4-2.4L F/inj. 22R-E CAN [1993]
4-2.4L F/inj. 22R-EC [1988-1984]
4-2.4L F/inj. 22R-EC CAN [1987]
4-2.4L F/inj. 22R-TEC [1987-1986]
4-2.4L F/inj. 22R-TEC Turbo [1988-1986]
V6-3.0L F/inj. (12V) SOHC 3VZ-E [1995-1988]
Previa
4-2.4L F/inj. (16V) DOHC 2TZ-FE [1995-1991]
4-2.4L F/inj. (16V) DOHC 2TZ-FZE SC [1997-1994]
Sequoia
V8-4.7L F/inj. (32V) DOHC 2UZ-FE [2009-2001]
Sienna
V6-3.0L F/inj. (24V) DOHC 1MZ-FE [2003-1998]
V6-3.0L F/inj. (24V) QOHC 1MZ-FE [2002]
V6-3.3L F/inj. (24V) DOHC 3MZ-FE [2006-2004]
T100
4-2.7L F/inj. (16V) DOHC 3RZ-FE [1998-1994]
V6-3.0L F/inj. (12V) SOHC 3VZ-E [1994-1993]
V6-3.4L F/inj. (24V) DOHC 5VZ-FE [1998-1995]
Tacoma
4-2.4L F/inj. (16V) DOHC 2RZ-FE [2001-1995]
4-2.4L F/inj. (16V) DOHC 2RZ-FE (N) [2004-2002]
4-2.7L F/inj. (16V) DOHC 2TR-FE [2013-2005]
4-2.7L F/inj. (16V) DOHC 3RZ-FE [2004-1995]
V6-3.4L F/inj. (24V) DOHC 5VZ-FE [2004-1995]
V6-4.0L F/inj. (24V) DOHC 1GR-FE [2013-2005]
Tundra
V6-3.4L F/inj. (24V) DOHC 5VZ-FE [2001-2000]
V6-3.4L F/inj. (24V) DOHC 5VZ-FE (1) [2004-2002]
V6-4.0L F/inj. (24V) DOHC 1GR-FE [2013-2005]
V8-4.7L F/inj. (32V) DOHC 2UZ-FE [2009-2000]
VOLKSWAGEN TRUCK
Routan
V6-3.8L F/inj. CGUA (1) [2010-2009]
YUGO
Cabrio
4-1.3L F/inj. (6) [1992-1990]
GV
4-1.1L 2 bbl. (2) [1989-1986]
4-1.3L F/inj. (6) [1992-1990]
GVL
4-1.1L 2 bbl. (2) [1989-1988]
GVS
4-1.1L 2 bbl. (2) [1988]
GVX
4-1.3L 2 bbl. (5) [1989-1987]
Originally Posted By: mrfish
Is their a site with reverse lookup?
http://www.purolatorautofilters.net/reso...0241&page=1
Is their a site with reverse lookup?
http://www.purolatorautofilters.net/reso...0241&page=1
- Status
