IAP IC-106CS Virgin Cut Open #4490857
08/17/17 08:25 AM
08/17/17 08:25 AM
Joined: Aug 2003
Posts: 2,551
DELAWARE
Hootbro Offline OP
Hootbro  Offline OP
Joined: Aug 2003
Posts: 2,551
DELAWARE
A few weeks back, I was stumbling around Ebay looking at filters for my Frontier and came across this IAP IC-106CS filter that was advertised for $1.88 shipped and peaked my interest because shipping would have to be more than the cost of the filter and wanted to see what one could get.

http://www.ebay.com/itm/IAP-Oil-Filter-IC-106CS-for-Honda/112302138156

Arrived out within the week by USPS First Class out of California and below is pictures of the filter before and after being cut open. Observations show it to have a prelubed gasket under the cellophane covering. The bypass valve is of a weird design I have never seen before and is some kind of metallic poppet plate design. Media was tight with about 60 pleats and measure apporx. 250 sq in of media. Center tube was much like a E-Core but with a two piece plastic ring design. Media had a fiber end cap but was resin impregnated and could not be peeled off by hand. ADBV is nitrle and was very supple but also on the thin side.



















2018 RAM 2500 Cummins 6.7L (Delvac 1300 15W-40)
2017 Jeep Renegade 2.4L (Idemitsu 0W-20)

Re: IAP IC-106CS Virgin Cut Open [Re: Hootbro] #4490913
08/17/17 09:31 AM
08/17/17 09:31 AM
Joined: Aug 2004
Posts: 4,807
Katy, Republic of Texas
blupupher Offline
blupupher  Offline
Joined: Aug 2004
Posts: 4,807
Katy, Republic of Texas
Interesting looking filter. And for under $2, not bad.
Now if we only knew the actual efficiency.


2012 xB: QSUD 0w-20/CQ Blue/5k
2010 Santa Fe: PP 0w-20/P1/8k
2007 Vue: VSP 5w-30/EcoGard/OLM
2004 F150: GTX HM 5w-20/TG2/4k
2002 F150: GTX HM 5w-20/EcoGard/1yr
1994 VT1100c: Peak 15w-40/PSL/5k



Re: IAP IC-106CS Virgin Cut Open [Re: Hootbro] #4490932
08/17/17 09:49 AM
08/17/17 09:49 AM
Joined: Jul 2015
Posts: 3,772
MD
AirgunSavant Offline
AirgunSavant  Offline
Joined: Jul 2015
Posts: 3,772
MD
Taiwan can make some really high quality machine parts.
I see a few issues here I'm not in love with but I see some things that are impressive too.
Thanks for the great pictures

Re: IAP IC-106CS Virgin Cut Open [Re: Hootbro] #4490955
08/17/17 10:34 AM
08/17/17 10:34 AM
Joined: Sep 2003
Posts: 3,135
Austin, Texas
Brons2 Offline
Brons2  Offline
Joined: Sep 2003
Posts: 3,135
Austin, Texas
The endcaps look a lot tougher than the ones on a Fram.

It sort of looks like a cartridge filter though that they just went ahead and built a canister for so they could use the same media for cartridge and spin-on.


2012 Hyundai Sonata GLS 6MT 2.4GDI, ProDS 10w30, XG9688 filter, 2018 Mitsubishi Outlander SEL 2.4 CVT, Factory fill still.
Re: IAP IC-106CS Virgin Cut Open [Re: Brons2] #4490968
08/17/17 10:51 AM
08/17/17 10:51 AM
Joined: Aug 2003
Posts: 2,551
DELAWARE
Hootbro Offline OP
Hootbro  Offline OP
Joined: Aug 2003
Posts: 2,551
DELAWARE
Originally Posted By: Brons2
The endcaps look a lot tougher than the ones on a Fram.

It sort of looks like a cartridge filter though that they just went ahead and built a canister for so they could use the same media for cartridge and spin-on.


Yeah, the fiber end caps have some stiff resin impregnation. Attempted to see if it pulled off easily and it would not without tearing the attached media off at the base.


2018 RAM 2500 Cummins 6.7L (Delvac 1300 15W-40)
2017 Jeep Renegade 2.4L (Idemitsu 0W-20)

Re: IAP IC-106CS Virgin Cut Open [Re: Hootbro] #4490990
08/17/17 11:12 AM
08/17/17 11:12 AM
Joined: Aug 2010
Posts: 12,906
Northern Kentucky
901Memphis Offline
901Memphis  Offline
Joined: Aug 2010
Posts: 12,906
Northern Kentucky
Well it says high efficiency on the box, so you know it's good


2012 Chevy Cruze LT 1.4T - 50k
2002 Buick Century 130k - Built 4T65e(Maxlife) - Edge 0w40 + Fram XG3980
Re: IAP IC-106CS Virgin Cut Open [Re: Hootbro] #4491037
08/17/17 11:46 AM
08/17/17 11:46 AM
Joined: Jul 2010
Posts: 19,263
PNW
ZeeOSix Offline
ZeeOSix  Offline
Joined: Jul 2010
Posts: 19,263
PNW
Construction looks decent. Not sure about the bypass valve. Hard to tell how it works by looking at the photos.

Re: IAP IC-106CS Virgin Cut Open [Re: ZeeOSix] #4491102
08/17/17 12:54 PM
08/17/17 12:54 PM
Joined: Aug 2010
Posts: 5,933
Champlain/Hudson Valley
Kira Offline
Kira  Offline
Joined: Aug 2010
Posts: 5,933
Champlain/Hudson Valley
I went to the website and I have to say:

It's one of a dying breed of foreign released sites where the translation budget wasn't too high.
It's a limited, Asian truck catalog first with a few car items interspersed.
Very few oil filters offered which have automotive applications.
It is always fun to see the names of models which are unavailable here.

Hey, the one oil filter efficiency I saw was stated as being "...as high as 5 micrometers".

Re: IAP IC-106CS Virgin Cut Open [Re: Hootbro] #4491124
08/17/17 01:18 PM
08/17/17 01:18 PM
Joined: Oct 2008
Posts: 12,629
The Old North State
Sayjac Offline
Sayjac  Offline
Joined: Oct 2008
Posts: 12,629
The Old North State
Interesting design. An ecore element as you note, but the pleating looks tight and uniform which is a plus for an ecore. Different type/looking bypass. I'm not going to question how it works. The Champ Labs clicker type bypass looks odd too imo. I like the looks of thread end element adbv sealing area as compared to the Champ design.

How come no ecore trusses visible from the dome end?

Thanks for c&p.

Re: IAP IC-106CS Virgin Cut Open [Re: Sayjac] #4491177
08/17/17 02:21 PM
08/17/17 02:21 PM
Joined: Aug 2003
Posts: 2,551
DELAWARE
Hootbro Offline OP
Hootbro  Offline OP
Joined: Aug 2003
Posts: 2,551
DELAWARE
Originally Posted By: Sayjac
Interesting design. An ecore element as you note, but the pleating looks tight and uniform which is a plus for an ecore. Different type/looking bypass. I'm not going to question how it works. The Champ Labs clicker type bypass looks odd too imo. I like the looks of thread end element adbv sealing area as compared to the Champ design.

How come no ecore trusses visible from the dome end?

Thanks for c&p.


Inner support "trusses" is a two piece affair and was taken out when I took the pic showing the inner pleat spacing.

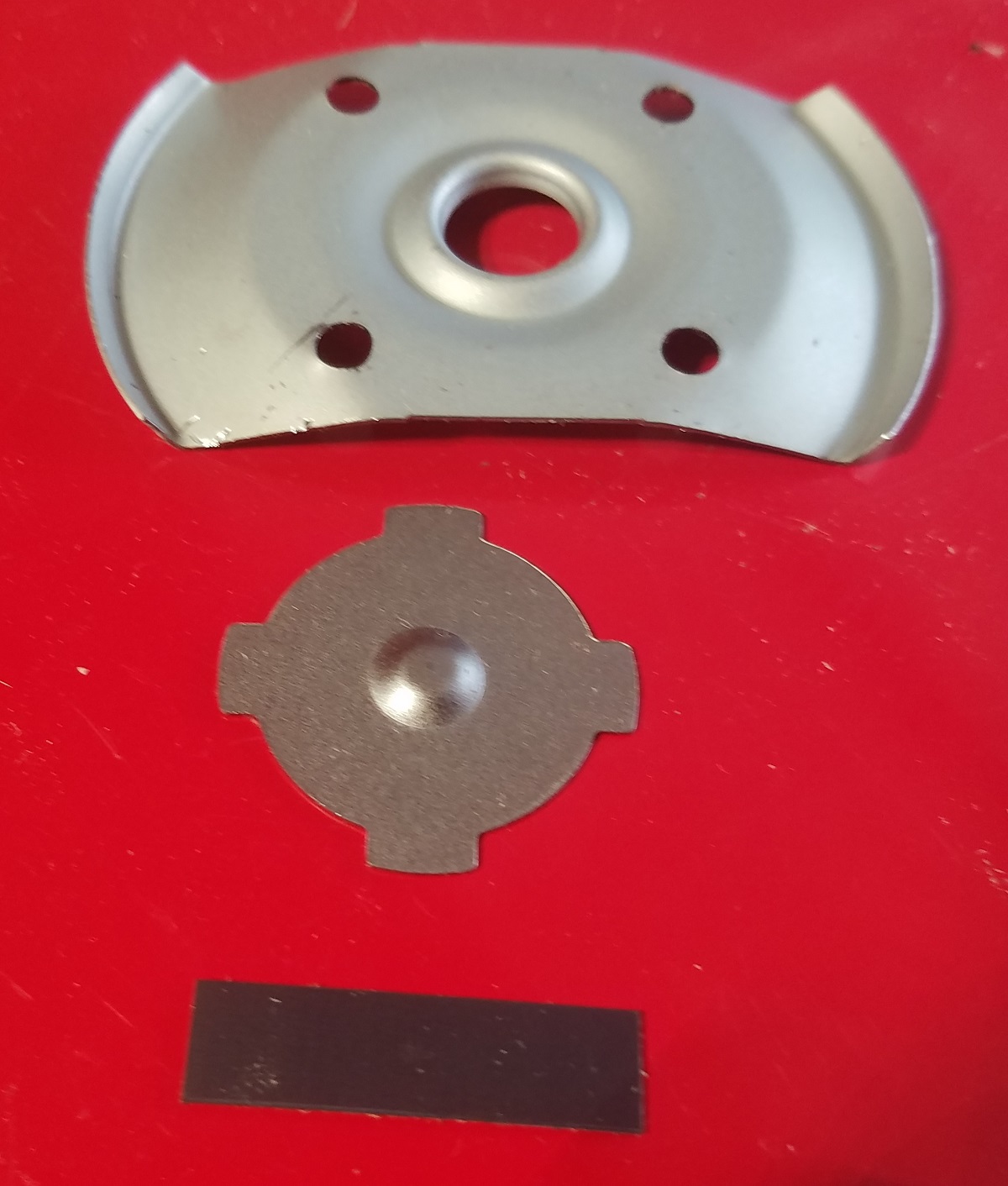

I drilled out and took apart the bypass valve and it looks like a dimpled plate that fulcrums on a strip of spring steel.





2018 RAM 2500 Cummins 6.7L (Delvac 1300 15W-40)
2017 Jeep Renegade 2.4L (Idemitsu 0W-20)

Re: IAP IC-106CS Virgin Cut Open [Re: Hootbro] #4491183
08/17/17 02:27 PM
08/17/17 02:27 PM
Joined: Oct 2008
Posts: 12,629
The Old North State
Sayjac Offline
Sayjac  Offline
Joined: Oct 2008
Posts: 12,629
The Old North State
^^Got it. Bypass is unique.

Re: IAP IC-106CS Virgin Cut Open [Re: Sayjac] #4491203
08/17/17 02:49 PM
08/17/17 02:49 PM
Joined: Aug 2003
Posts: 2,551
DELAWARE
Hootbro Offline OP
Hootbro  Offline OP
Joined: Aug 2003
Posts: 2,551
DELAWARE




2018 RAM 2500 Cummins 6.7L (Delvac 1300 15W-40)
2017 Jeep Renegade 2.4L (Idemitsu 0W-20)

Re: IAP IC-106CS Virgin Cut Open [Re: Hootbro] #4491227
08/17/17 03:14 PM
08/17/17 03:14 PM
Joined: Jul 2010
Posts: 19,263
PNW
ZeeOSix Offline
ZeeOSix  Offline
Joined: Jul 2010
Posts: 19,263
PNW
Looks like the black rectangle piece of metal in the bypass valve works as a "beam spring".

The IAP video is pretty hokey.

Re: IAP IC-106CS Virgin Cut Open [Re: Hootbro] #4491307
08/17/17 04:55 PM
08/17/17 04:55 PM
Joined: Mar 2012
Posts: 371
Washington, USA
Onug Offline
Onug  Offline
Joined: Mar 2012
Posts: 371
Washington, USA
Having fun with Google Translate...




2016 F-150 3.5L Ecoboost
Current Oil: Castrol Magnatec 5W-30 and Fram Ultra filter
Re: IAP IC-106CS Virgin Cut Open [Re: Hootbro] #4491332
08/17/17 05:37 PM
08/17/17 05:37 PM
Joined: Oct 2014
Posts: 2,538
San Antonio, TX
Nyogtha Offline
Nyogtha  Offline
Joined: Oct 2014
Posts: 2,538
San Antonio, TX
Looks like an "adaptation" of Champ Labs Ecore technology coupled with an "adaptation" of Champ Labs "clicker" BPV technology. I don't recall ever seeing an Ecore with clicker bypass produced by Champ Labs. Champ Labs Ecores in applications requiring BPVs have either had combo valves or coil spring design BPVs.

The Champ Labs made AC Delco Classic PF1250 (non-Ecore) is an application that was still using clicker BPV last I looked at one of those.


"No matter how paranoid you are you're not paranoid enough. Tell the truth. Reach as many people as you can with it. That's your weapon." - Susanne Modeski, aka "Holly" to The Lone Gunmen
